Главная страница > Продукция> Покрывало из стеклянной шерсти> Class A Fire Resistant Glass Wool Blanket with High Moisture Resistance and 0.031-0.042 W/mK Thermal Conductivity for HVAC and Pipe Wrap

Class A Fire Resistant Glass Wool Blanket with High Moisture Resistance and 0.031-0.042 W/mK Thermal Conductivity for HVAC and Pipe Wrap

Class A Fire Resistant Glass Wool Blanket with High Moisture Resistance and 0.031-0.042 W/mK Thermal Conductivity for HVAC and Pipe Wrap
Class A Fire Resistant Glass Wool Blanket with High Moisture Resistance and 0.031-0.042 W/mK Thermal Conductivity for HVAC and Pipe Wrap Class A Fire Resistant Glass Wool Blanket with High Moisture Resistance and 0.031-0.042 W/mK Thermal Conductivity for HVAC and Pipe Wrap Class A Fire Resistant Glass Wool Blanket with High Moisture Resistance and 0.031-0.042 W/mK Thermal Conductivity for HVAC and Pipe Wrap Class A Fire Resistant Glass Wool Blanket with High Moisture Resistance and 0.031-0.042 W/mK Thermal Conductivity for HVAC and Pipe Wrap Class A Fire Resistant Glass Wool Blanket with High Moisture Resistance and 0.031-0.042 W/mK Thermal Conductivity for HVAC and Pipe Wrap
Основная информация
Место происхождения: КИТАЙ
Фирменное наименование: fanryn
Сертификация: ASTM E84
Номер модели: стеклянное одеяло
Количество мин заказа: 1*40HQ
Цена: 0.1-6$
Упаковывая детали: Ваакуум пластиковый пакет+тканый пакет
Время доставки: 7-10 дней
Условия оплаты: T/T.
Поставка способности: 10000 квадратных метров
Лучшая цена Контакт
Подробная информация
Огнестойкость: КЛАСС А Влагостойкость: Высокий
Толщина: 25mm до 200mm Химическая стойкость: Высокий
Теплопроводность: 0,031-0,042 Вт/мк Плотность: 10-48 кг/м3
Экологичный: Да Материал: стеклянный
Звукопоглощение: Высокий Тип изоляции: Теплоизоляция
Долговечность: Высокий Приложение: Крыши, стены, полы
Выделить:

aluminum foil fiberglass insulation roll

,

thermal acoustic blanket for HVAC

,

pipe wrap glass wool blanket

Характер продукции

Aluminum Foil Faced Fiberglass Insulation Roll
Thermal Acoustic Blanket for HVAC and Pipe Wrap
FANRYN centrifugal glass wool blanket insulation is engineered for large-area installation. In addition to excellent thermal insulation properties, it also offers effective shock absorption and acoustic isolation, particularly for mid-to-low frequency noise, helping to reduce sound transmission and improve the working environment. The product is available with an optional aluminum foil facing, which enhances moisture resistance, corrosion protection, and thermal reflectivity, thereby increasing overall durability and energy efficiency. It is ideal for applications where hygiene or high humidity conditions are a concern.

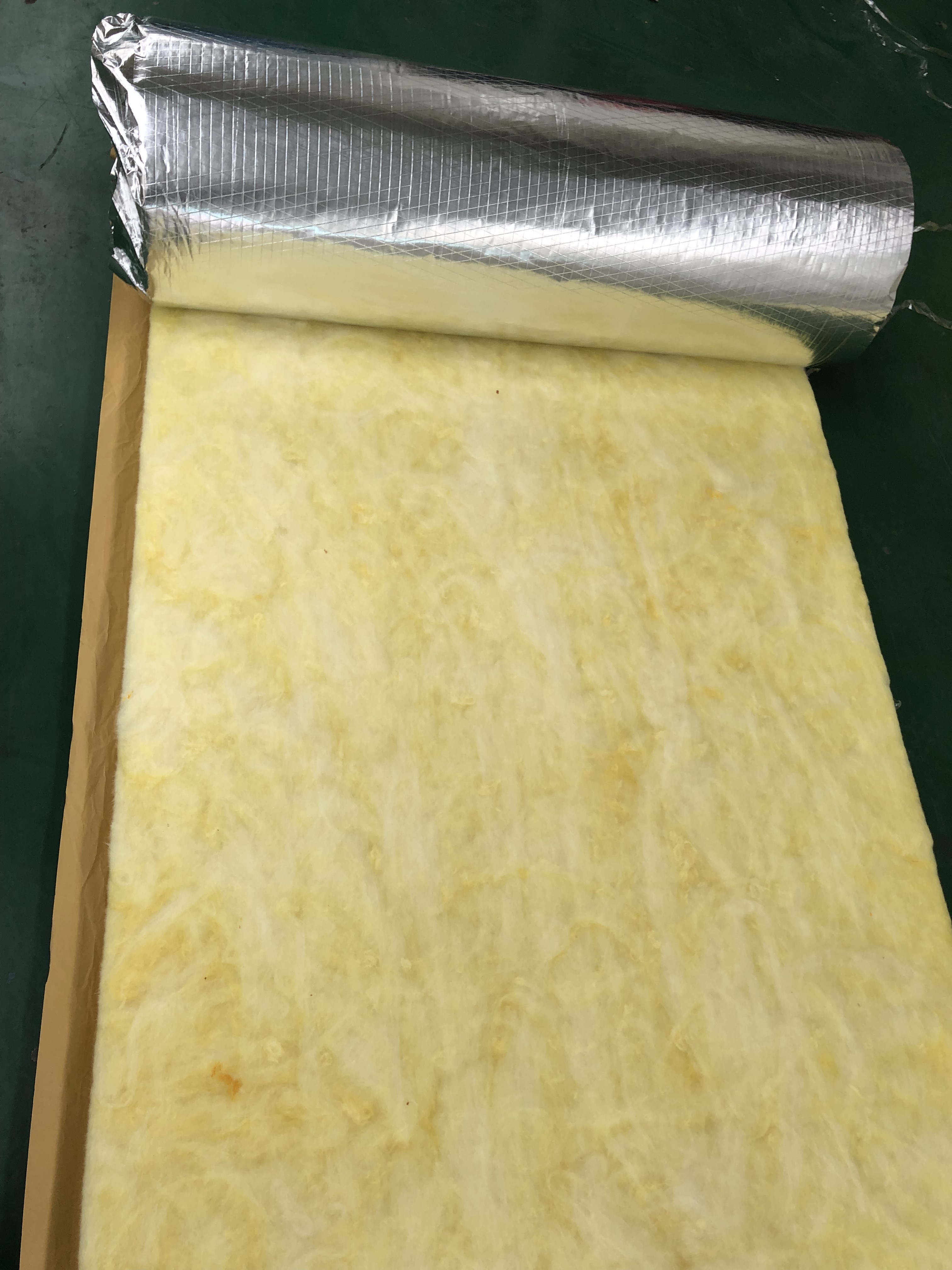

FANRYN glass wool insulation roll showing aluminum foil facing and material texture
Product Specifications
Density (kg/m³) Thickness (m) Length (m) Width (m) Rolls/Packing
10-48 0.025-0.2 5-30 0.6 2 rolls
10-48 0.025-0.2 5-30 1.1 1 roll | 2 rolls overlapping
10-48 0.025-0.2 5-30 1.15 1 roll | 2 rolls overlapping
10-48 0.025-0.2 5-30 1.2 1 roll | 2 rolls overlapping
10-48 0.025-0.2 5-30 1.25 1 roll | 2 rolls overlapping
Technical Data
Item Unit Index Standard
Density kg/m³ 10-48 GB/T 5480.3
Average fiber diameter μm 5-8 GB/T 5480.4
Water content % ≤ 1 GB/T 16400-2003
Grade of combustibility Non-combustible Grade A GB 8624-1997
Reshrinking temperature ℃ 250-400 GB/T 11835-2007
Thermal conductivity w/m·k 0.034-0.06 GB/T 10294
Hydrophobicity % ≥ 98 GB/T 10299
Moisture rate % ≤ 5 GB/T 5480.7
Main Applications
  • Wall Insulation: Used as thermal insulation layer for building exterior or interior walls, effectively reducing heat loss and improving energy efficiency.
  • Steel Structure Insulation: Ideal for insulating steel roofs and walls, providing both thermal and acoustic benefits while resisting moisture and corrosion.
  • Indoor Partition Walls: Enhances acoustic and thermal performance of interior walls, creating quieter and more comfortable living or working spaces.
  • Train Compartments: Provides lightweight thermal and acoustic insulation in railway vehicles, contributing to passenger comfort and energy savings.
  • Sound Absorption and Acoustical Isolation: Widely used in studios, cinemas, and machinery rooms to reduce noise transmission and improve acoustic environments.
  • HVAC Duct Insulation: Wraps around ventilation ducts to prevent heat loss/gain and control condensation while reducing system noise.
Quality Standards
According to GB STANDARDS, EN13162, EN13172, ISO9001:2000
Quality certification and standards documentation Glass wool insulation application in industrial setting Technical specifications and performance data Installation guidelines and product features
Product Advantages
  • Excellent Resilience: Rapidly recovers to original thickness within 24 hours after opening vacuum-sealed packaging, ensuring consistent performance and ease of installation.
  • Uniform Thickness and Color: Outstanding consistency in both thickness and color, providing a neat and professional appearance for various applications.
  • Superior Dimensional Stability: Excellent shape retention capabilities maintain structural integrity over time, even under changing environmental conditions.
  • Reduced Fiber Irritation: Composed of soft, long glass fibers with advanced bonding technology, significantly minimizing fiber shedding and flying debris during handling and installation.
Product Details

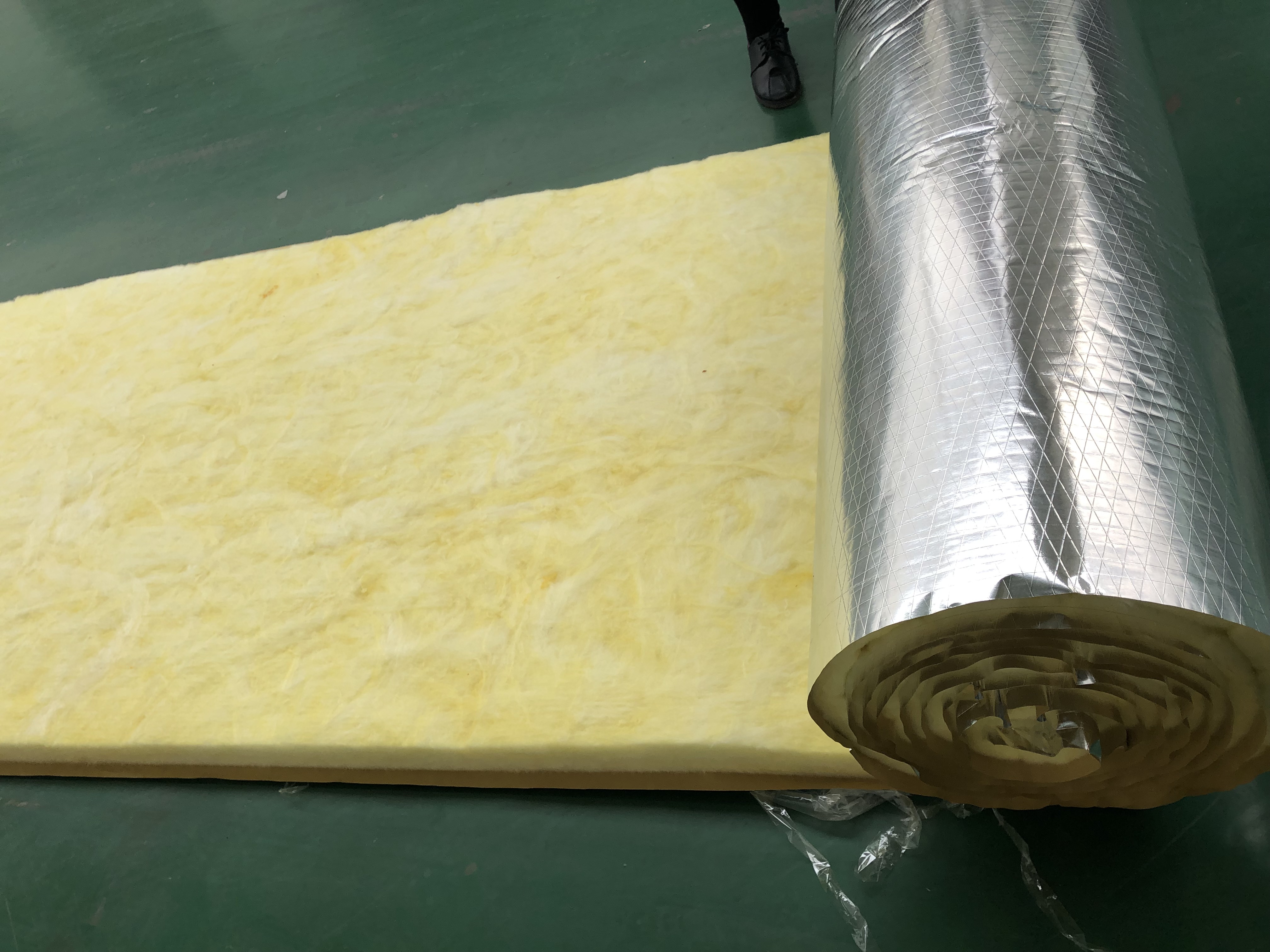

Close-up view of glass wool insulation material texture Glass wool insulation installation example
Packaging Options
  • Vacuum plastic bag + woven bag
  • Vacuum plastic bag + woven bag + PE bag
  • Vacuum plastic bag + PE shrinking bag
  • PE shrinking bag
Packaging example showing vacuum sealed insulation rolls Packaged insulation rolls ready for shipment Insulation packaging and labeling details
Product Gallery

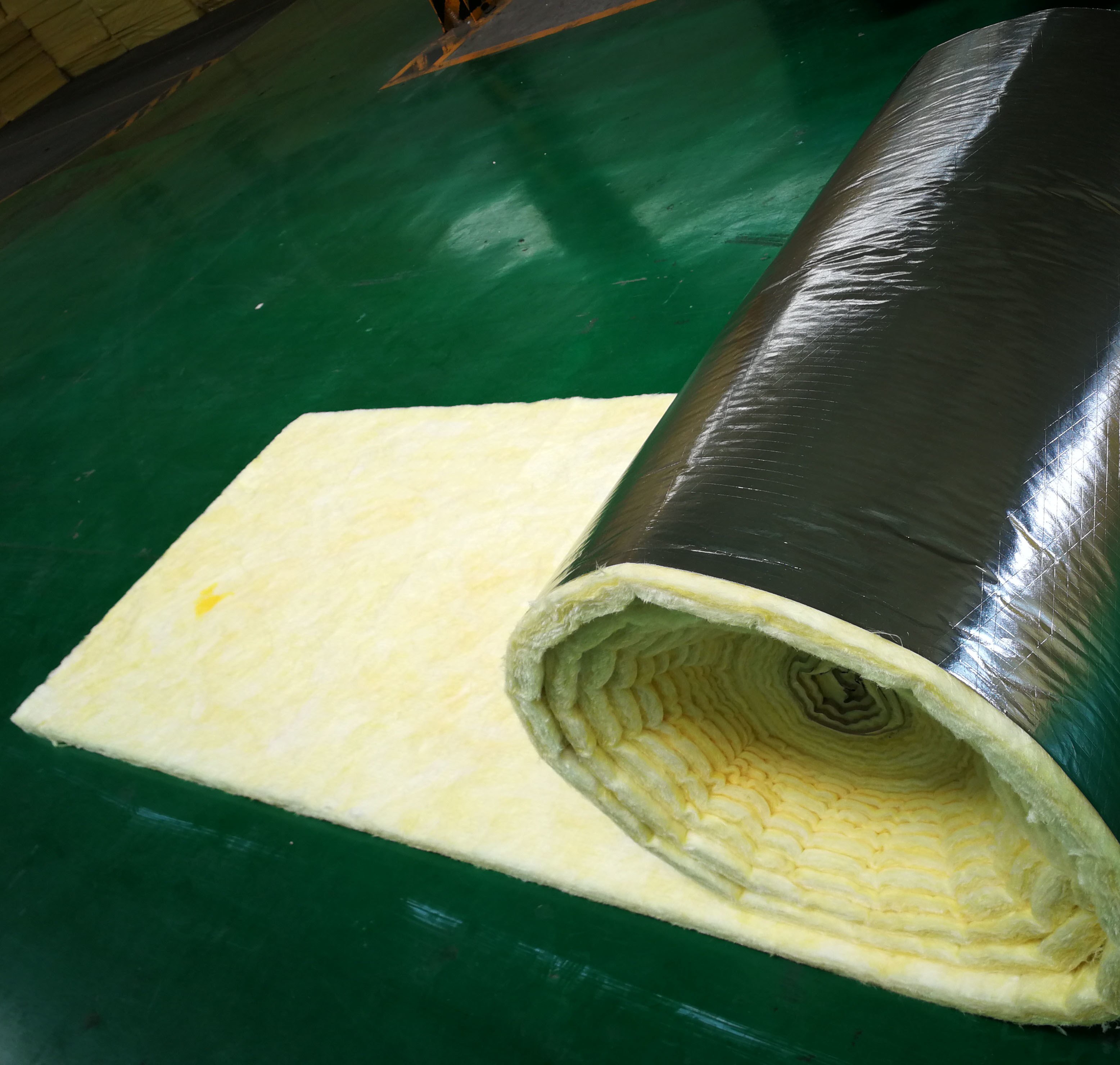

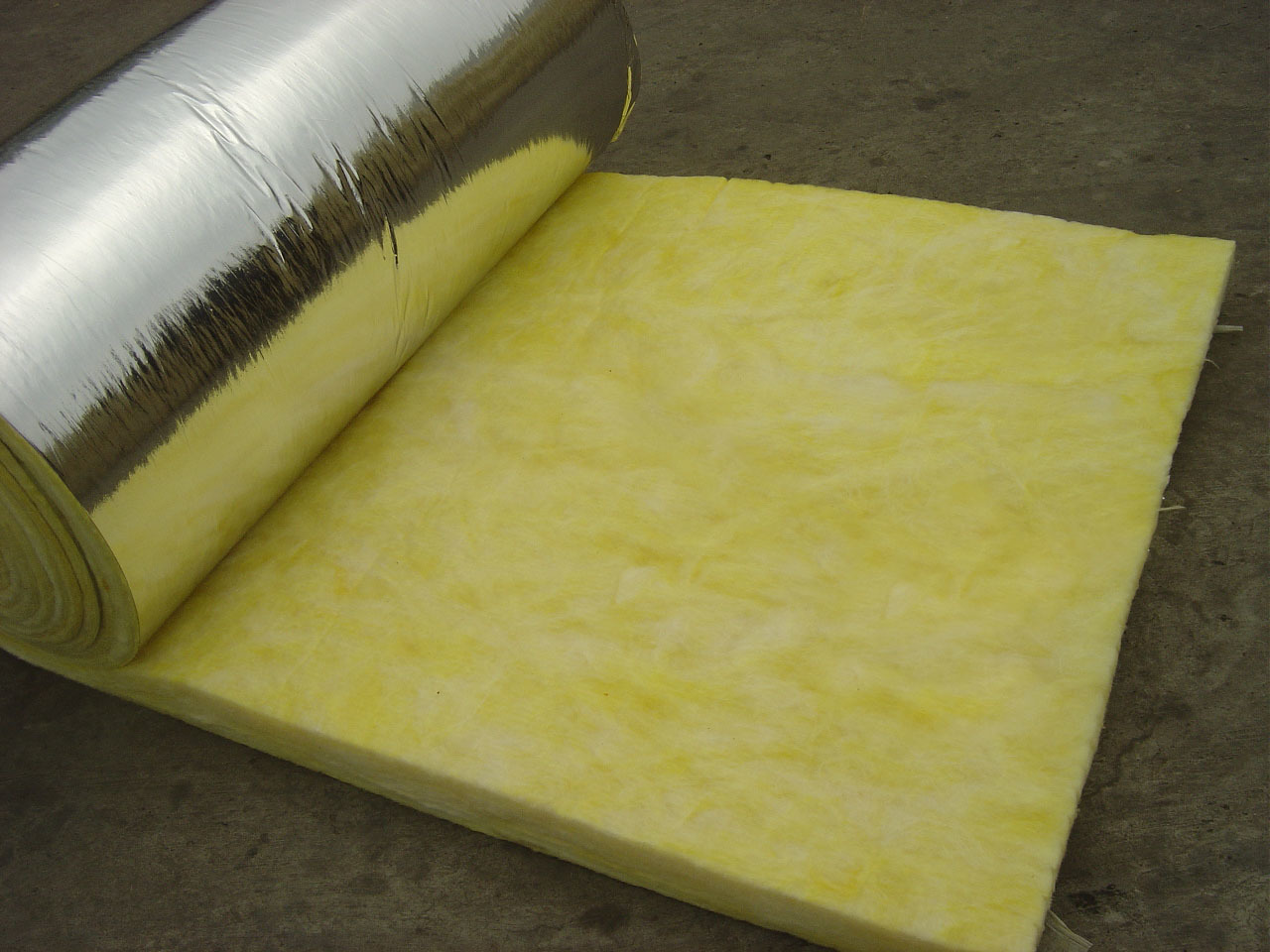

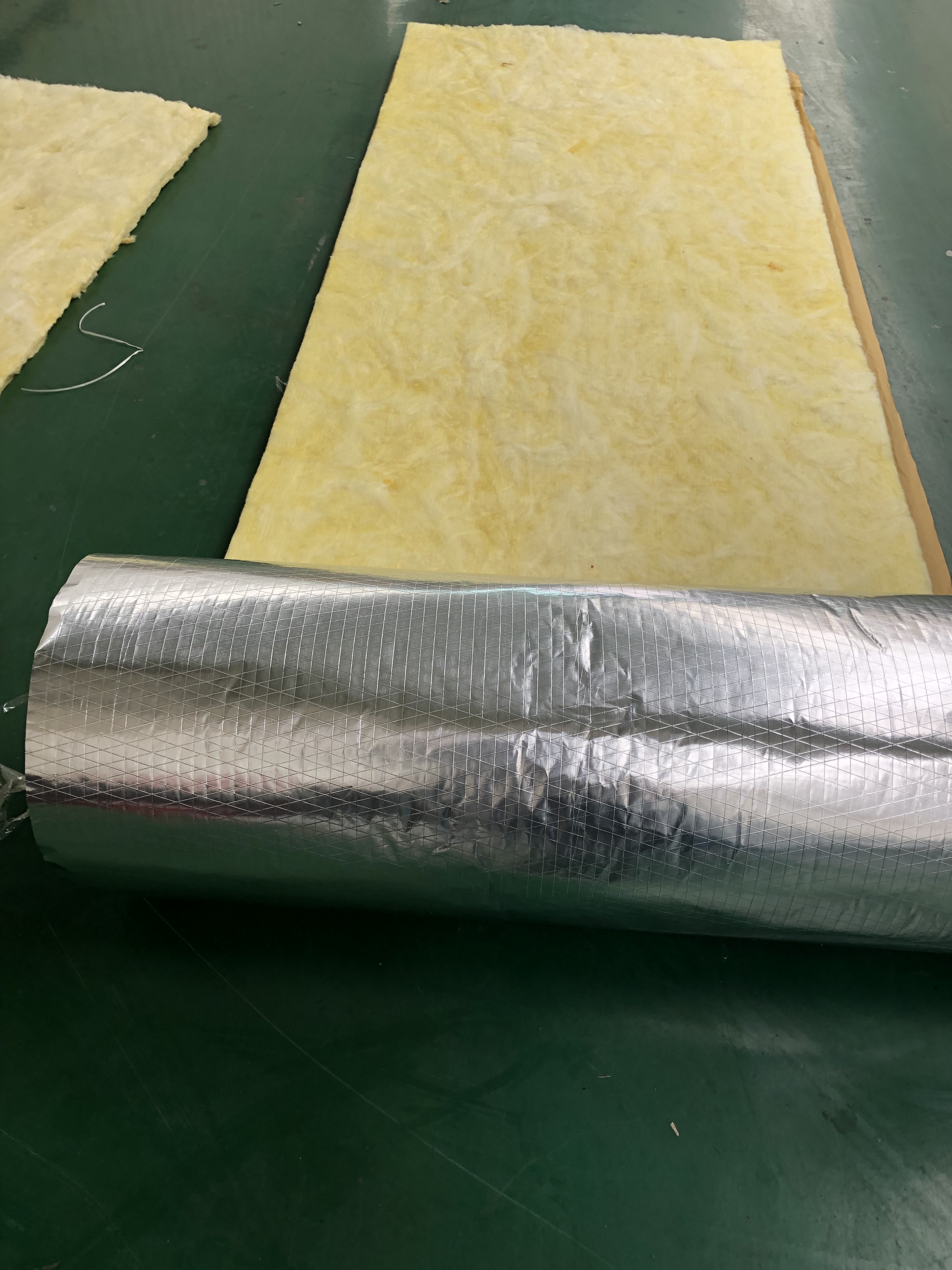

Fanrun glass wool insulation blanket thermal insulation Fanrun glass wool insulation blanket installation Fanrun glass wool insulation blanket applications
Frequently Asked Questions
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process.
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag + woven bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usually 7-10 work days after placing order.
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
